Power Range : 30 - 120 kVA
3:3
30-120 kVA 400 Hz Master FC400 series static frequency converters are available from 30 to 120 kVA, with 50 or 60 Hz input and 400 Hz output. The result of extensive experience acquired in the UPS industry, the Master FC 400 series is distinguished by the use of technologically advanced components and for excellent reliability, ease of maintenance and ease of operation. |
| Address | : | Perkantoran Kedoya Elok Plaza Blok DC 47 |
| JL. Panjang, Jakarta 11520, Indonesia | ||
| Phone | : | (+62-21) 5806180 |
| Fax | : | (+62-21) 5809185 |
| : | pt_msc@cbn.net.id |
Master FC400 (30 - 120 kVA)
- Characteristics
- Documents

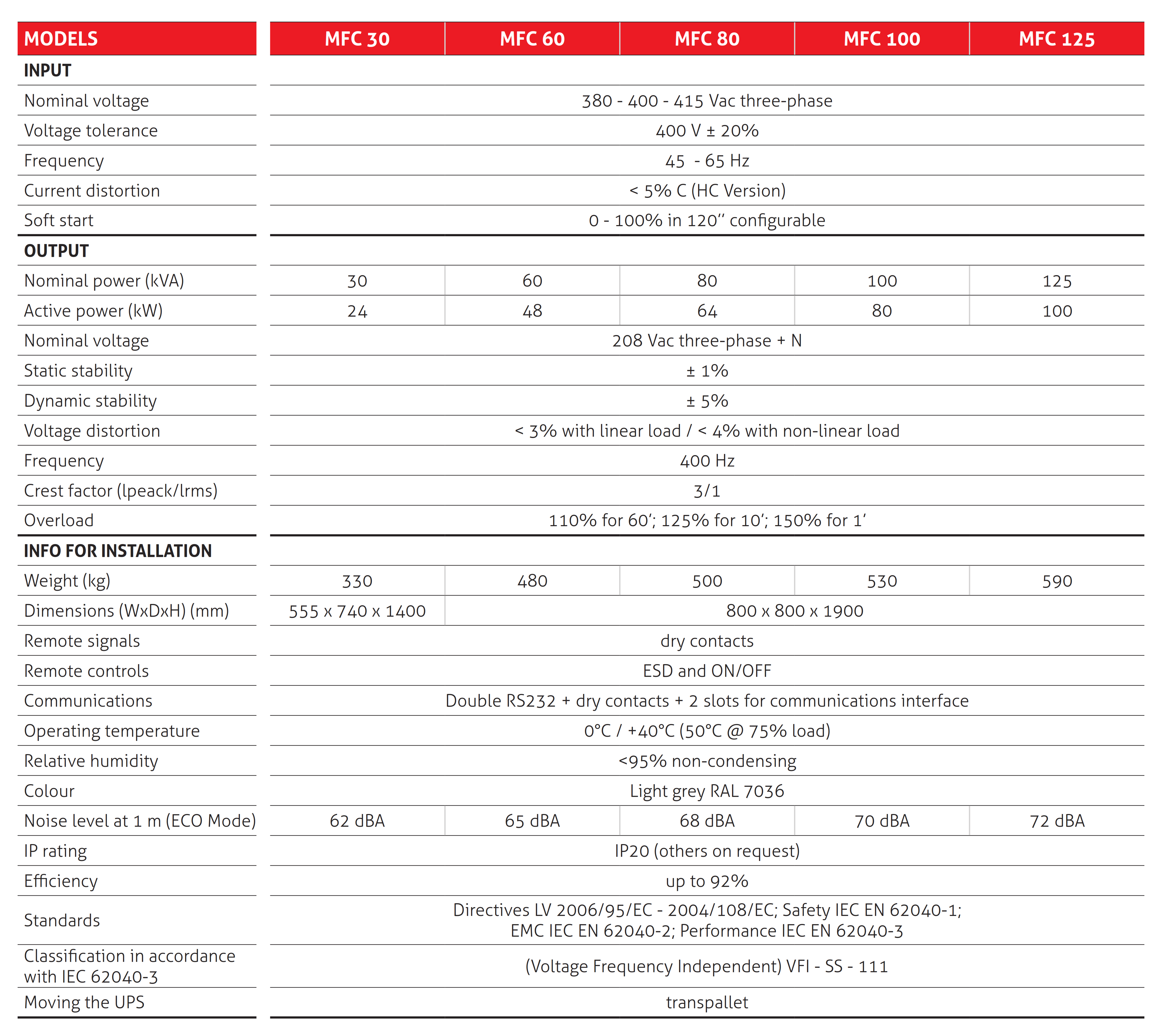

- Technical Specification
Minimum impact on mains – easy source
The Master FC400 was designed to reduce to a minimum the impact on the mains or generator located upstream, thanks to the low harmonic content input and the progressive start of the rectifier. These features make the Master FC400 frequency converters especially compatible with generators.
Easy installation and maintenance
The Master FC400 requires a small space for installation (only 0.86m2 for a 120kVA model).
The main assemblies of the UPS can be easily accessed for maintenance, via the removable front panel. Fans located in the top of the UPS cabinet, eliminate the need for side or rear access, and allow the UPS to be placed against a wall.
Applications
Master FC400 provides additional protection for a wide range of applications, including:
- Powering airplanes in airports
- Radar and flight-control systems
- Naval applications
- Military applications
- Power for test benches.
Brochure Master FC400
